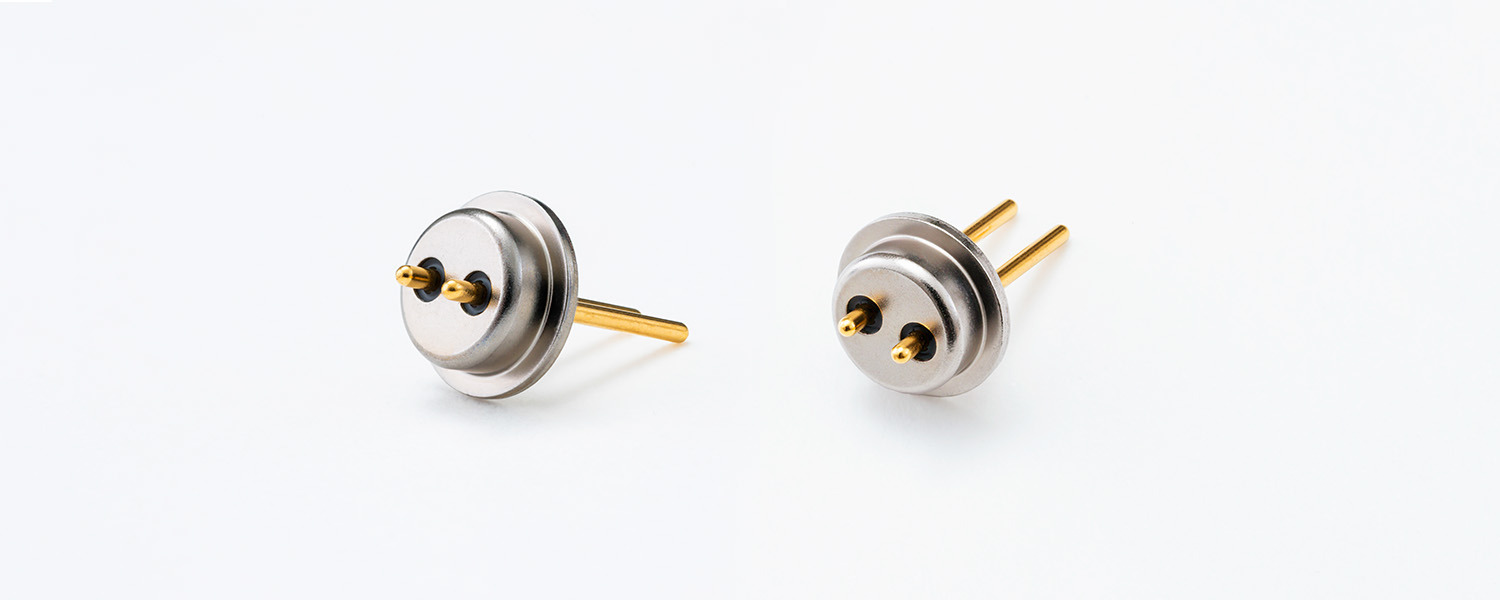

Hermetic Seals for Airbag Igniters and Seat Belt Pretensioners

Product Overview

Airbags and seat belt pretensioners are the most widely used safety systems for the passengers of vehicles. At the occurrence of a car crash, the crash sensor of these two systems sends a signal to the igniter and the inflator is fired. The signal is sent through Koto hermetic seals to the igniter. Our hermetic seals are designed to realize a strong construction having superior pressure resistance by utilizing our compression sealing technology and optimal material selection.

Features

The hermetic seals for automotive safety systems are required to surely transmit the electrical signals to actuate the hermetically-sealed igniter for a long period of time. We are familiar with the design of the hermetic seals in this field and are able to provide the best solution for customers.

Use

Spec

Housing material Steel or Stainless steel
Pin material FeNi
Glass material Soda barium glass
Surface treatment Gold plating on the Pin only (Selective gold plating)
Hermeticity 1x10-9Pa m3/s or less
Pressure resistance strength 300Mpa
