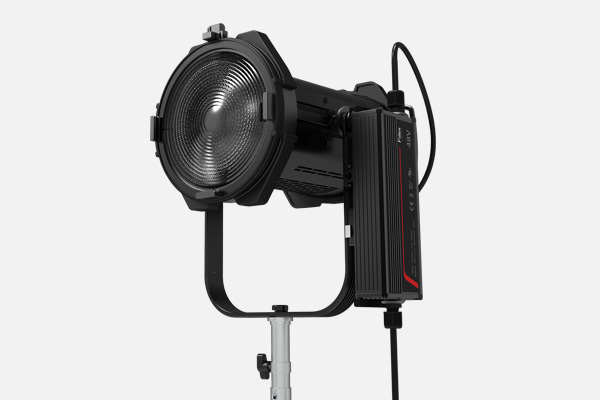

Main features

・High-CRI white light output (2000-10000K)
・8 and 16-bit color modes: CCTRGBW, CCTHSI, CIExy, etc.
・12°-62° spot/flood range with no optical aberrations

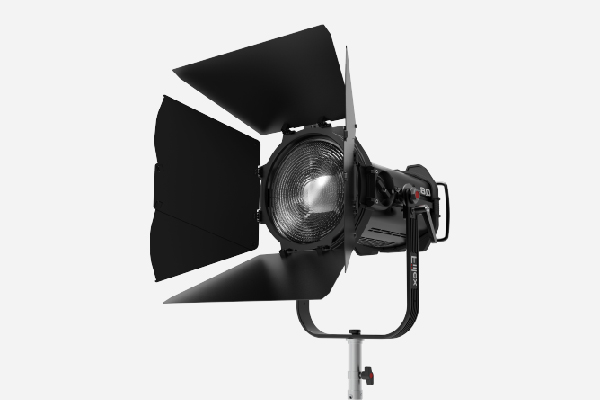

・8-leaf barndoor cuts clean with no color splitting
・Smooth and Sharp dimming modes
・DMX-controllable fan modes: Full, Variable, Silent, Off
・IP-X5 Rating (water resistant)
・Wireless control via integrated LumenRadio

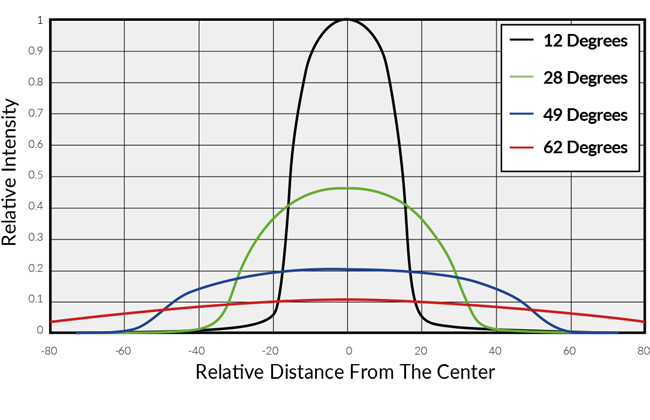

Beam Profile


Fresnel Diameter 202mm
Beam Angle 12°~62°
CCT Range 2000-10000K continuous tuning + magenta/green shift
CRI/TLCI 95 / 90 typical
Control Modes CCT, HSI, RGBW, Gels, Effects, CCTRGBW, CCTHSI, CIExy, ICTHS, and more
Dimming 100 - 0% flicker free
Dimming Modes Smooth, Sharp
Light Engine 1x 300W DiCon Dense Matrix LED
Power Consumption 320W max AC | 300W max DC
BTUs/hour 1091 (BTUs/hour) max
Input 100~240V AC, 50~60Hz(via powerCON TRUE1) / 48V DC (via XLR-3)
DMX / RDM Port XLR-5
Wireless Control Integrated LumenRadio
Ethernet sACN, ArtNet (via RJ45))
USB Power Output 5V/1A (via USB-A)
Weight Fixture: 17 lbs / 7.7kg (includes yoke) | Power adapter: 4.8 lbs/2.2kg

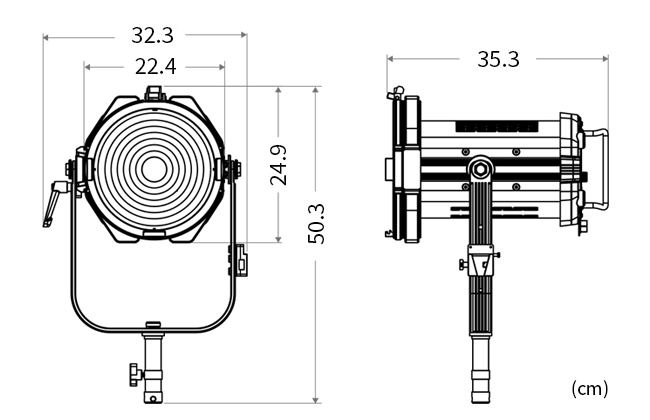

Size (L x W x H)) 13.6” x 12.7” x 19.6” / 34.7cm x 32.3cm x 49.9cm
Mount Type Combo (baby stud female / junior stud male)
IP Rating IP-X5 (water-resistant)
Thermal Design Aluminum extrusion cooling system w/ fan
Operating Temperature 0 ~ 40 ℃

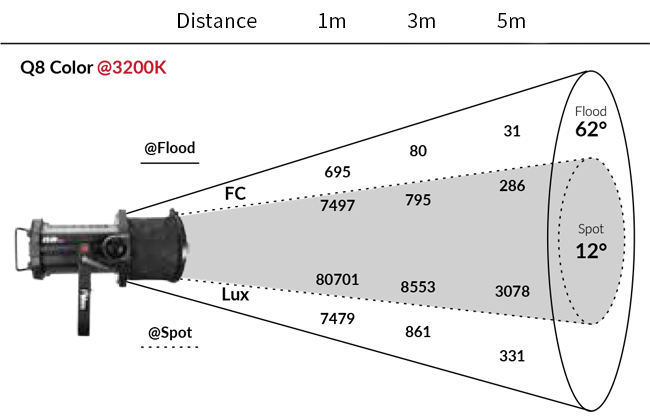

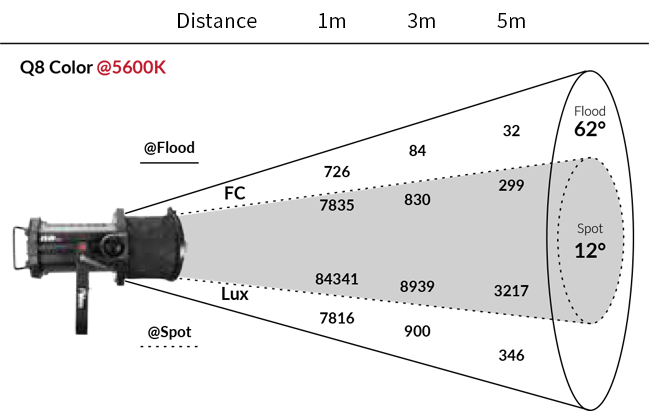

Photometric Data

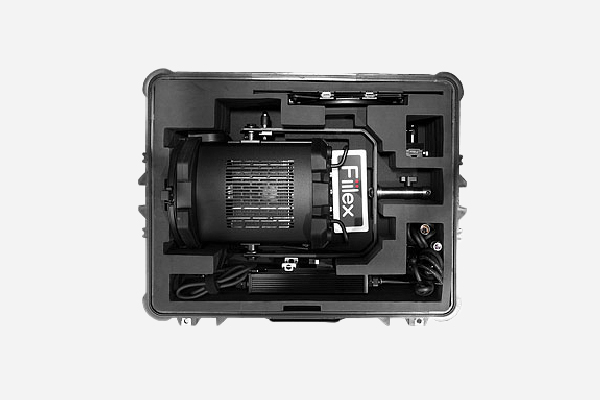

Fixtures & Kits

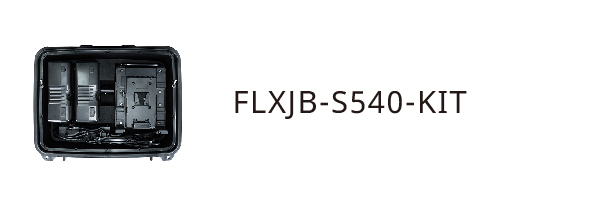

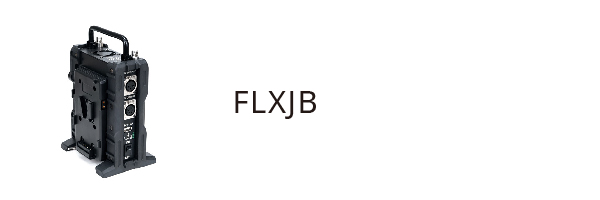

Flexible Energy Solutions
