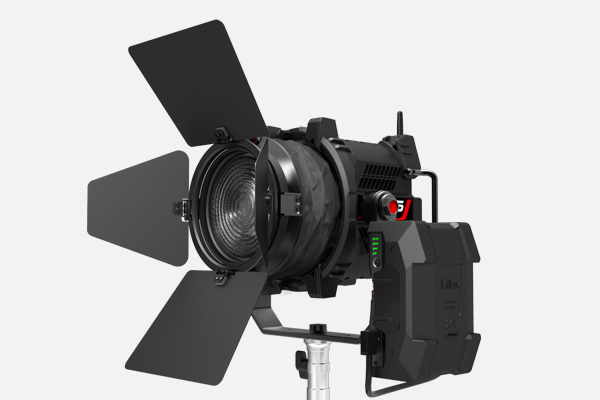

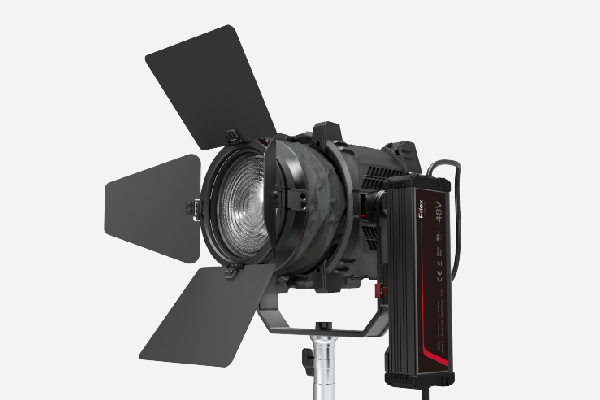

Q5 COLOR
Main features
・High-CRI white light output (2000-10000K)
・ 8 and 16-bit color modes: CCTRGBW, CCTHSI, CIExy, etc.
・12°-55° spot/flood range with no optical aberrations
・ V-mount power supply swaps easily with 26V batteries
・Removable fresnel for wider throw / softbox compatibility
・Extremely lightweight (≈7 lbs)
・Smooth and Sharp dimming modes
・DMX-controllable fan modes: Full, Variable, Silent, Off
・ IP-X5 Rating (water resistant)
・8-leaf barndoor cuts clean with no color splitting

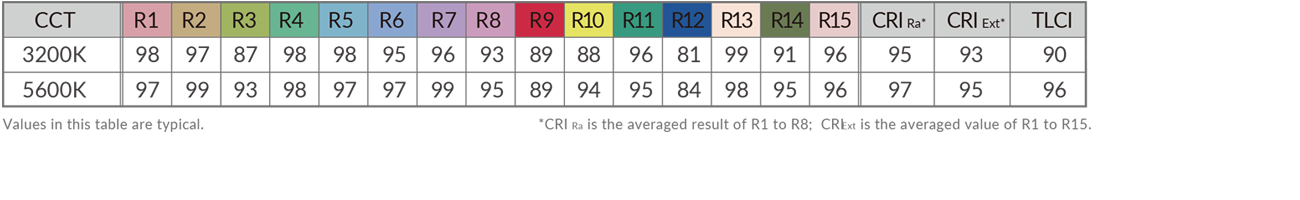

Excellent Color Rendering

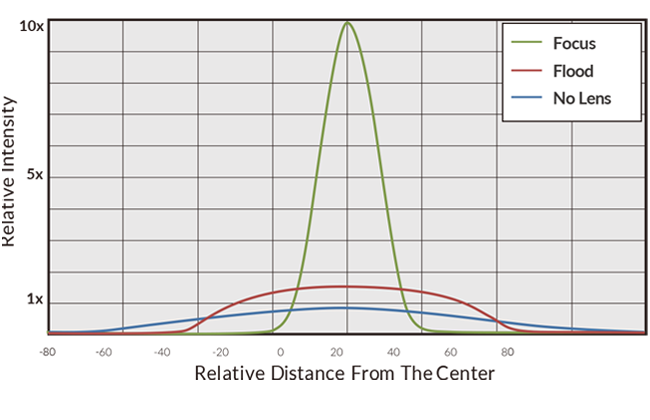

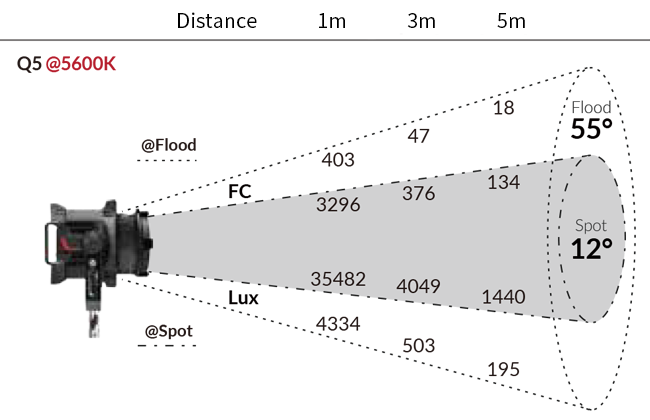

Photometric Data
Specifications
| Fresnel Diameter | 127mm |
|---|---|
| Beam Angle | 12°-55° with fresnel (80° without fresnel) |
| CCT Range | 2000-10000K continuous tuning + magenta/green shift |
| CRI/TLCI | 95/90 |
| Control Modes | CCT, HSI, RGBW, Gels, Effects, CCTRGBW, CCTHSI, CIExy, ICTHS, and more |
| Dimming | 100 - 0% flicker free |
| Dimming Modes | Smooth, Sharp |
| Light Engine | 1x 160W DiCon Dense Matrix LED |
| Power Consumption | 185W max AC | 165W max DC |
| BTUs/hour | 631 (BTUs/hour) max |
| 電源 | 100 - 240V AC, 50~60Hz (via powerCON TRUE1) / 24-48V DC (via XLR-3) |
| DMX / RDMポート | XLR-5 |
| USB Power Output | 5V / 1A（via USB-A） |
| Weight | Fixture: 3.3kg | Power adapter: 1.2kg |

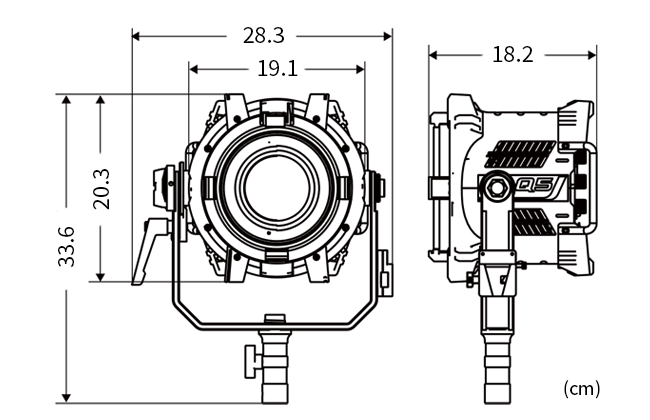

| Size (L x W x H) | 19.7cm × 28.3cm × 39.7cm |
| Mount Type | Combo (baby stud female / junior stud male) |
| IP Rating | IP-X5（water-resistant） |
| Thermal Design | Aluminum extrusion cooling system w/ fan |
| Operating Temperature | 0 ～ 40 ℃ |

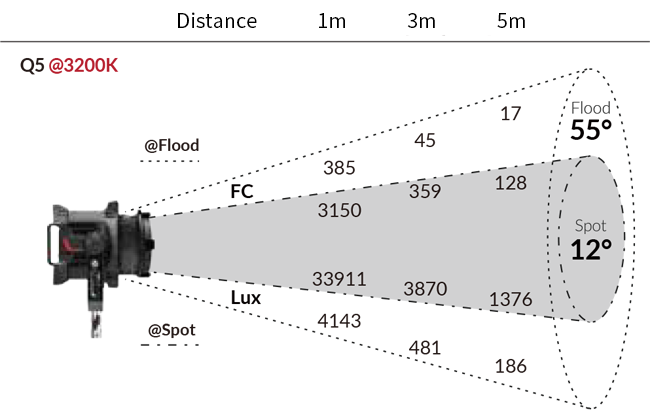

Photometric Data
Fixtures & Kits
FLXQ5CLR

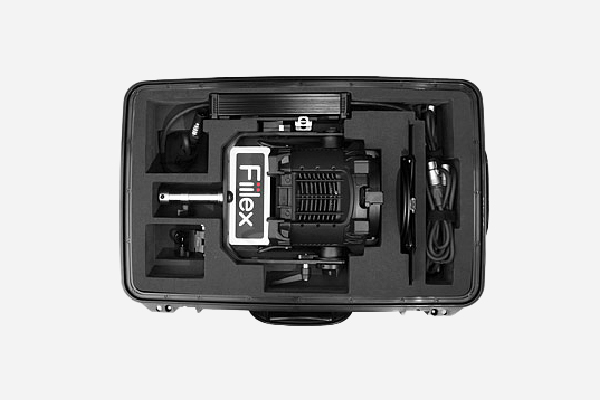

FLXQ5CLR-K1-KIT

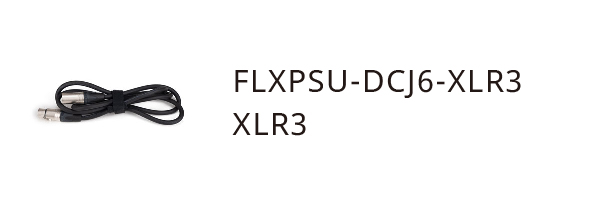

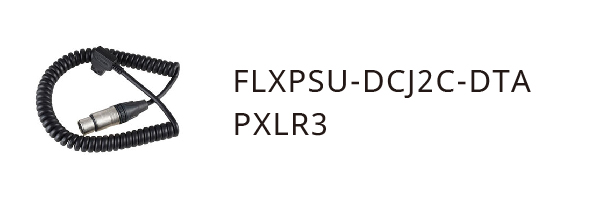

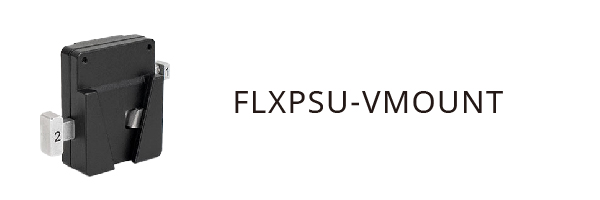

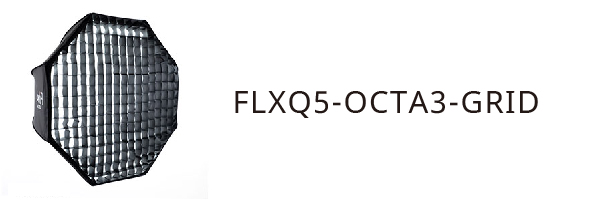

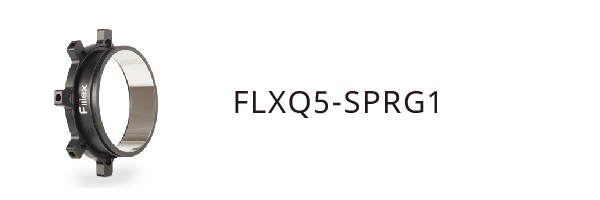

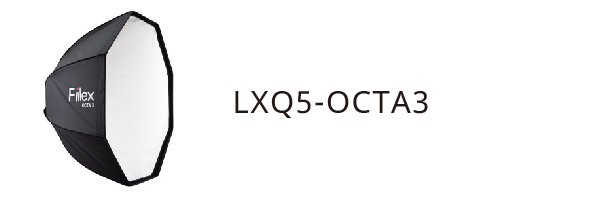

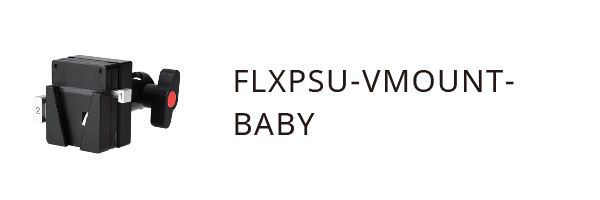

Accessories

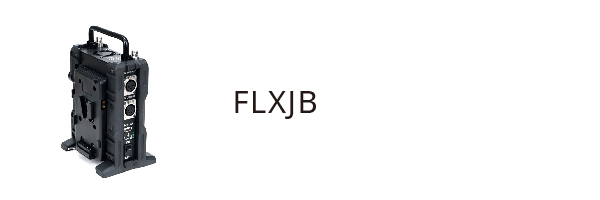

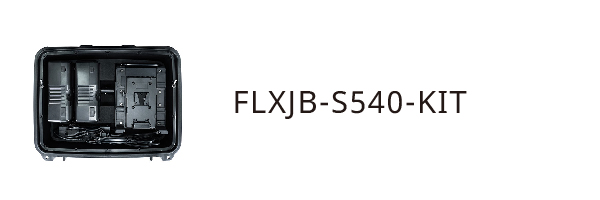

Flexible Energy Solutions
